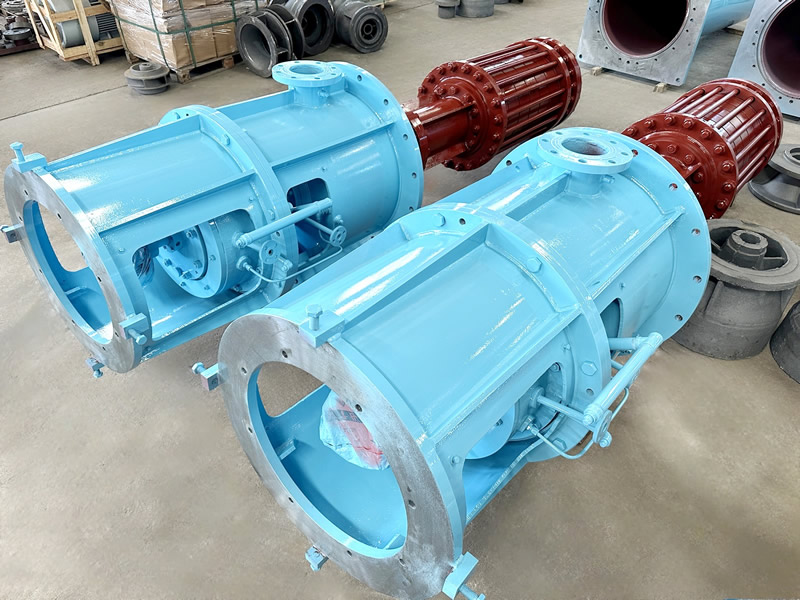

‌How long is the lifespan of the vertical long shaft multi-stage drum bag turbine pumps?

The service life of a vertical long shaft multi-stage drum bag turbine pump can usually reach more than 10 years, and its specific service life is affected by the following factors. Targeted measures can be taken to extend the service life:
1、 Core factors affecting lifespan
Quality and Design of Pumps
Material selection: The overcurrent components are made of corrosion-resistant materials (such as duplex steel and super duplex steel) to resist medium erosion and extend their lifespan. For example, when transporting chloride containing media, the corrosion resistance of super duplex steel is significantly better than that of ordinary stainless steel.
Structural design: Multi stage radial splitting structure, optimized cavitation performance of the first stage impeller, balanced drum or centripetal thrust ball bearing to balance axial force, etc., can reduce mechanical damage during operation and improve stability.
Working environment conditions
The characteristics of the medium, such as temperature, pressure, corrosiveness, and particle content, directly affect the wear of the pump body. For example, when transporting high-temperature and high-pressure steam, heat-resistant steel materials are required; When conveying media containing suspended metal particles, it is necessary to strengthen the wear-resistant design of guide bearings.
Installation depth: The depth of underwater insertion (such as up to 3.1 meters) should be determined according to the NPSH (NPSH) requirements to avoid cavitation damage.
Maintenance Strategy
Regular maintenance: Check the pump body, seals, bearings and other components every six months to one year, and replace worn parts in a timely manner. For example, when the guide bearing is made of silicon carbide or ceramic matrix composite materials, the service life can reach more than 15000 hours, but regular monitoring is still required.
Lubrication management: Ensure the normal operation of the lubrication system and reduce mechanical fatigue damage to the shaft.
Cleaning and anti-corrosion: Regularly clean the pump body and pipelines to prevent the accumulation of impurities; For pumps transporting corrosive liquids, anti-corrosion coatings or cathodic protection measures should be taken.
2、 Practical measures to extend the service life of vertical long shaft multi-stage cylindrical bag turbine pump
Optimize selection and matching
Select the appropriate type of vertical long shaft multi-stage drum bag turbine pump based on the working conditions. For example, when transporting easily vaporized liquids such as ethylene and propylene, the vertical long shaft multi-stage drum bag turbine pump is preferred. The optimized design of the first stage impeller can reduce the risk of cavitation.
Avoid "big horse pulling small car" or overloading operation, ensure that the flow rate and head match the system requirements.
Strengthen operational monitoring
Install an intelligent monitoring system to track real-time parameters such as vibration, temperature, and pressure, and provide early warning of faults. For example, an abnormal increase in bearing temperature may be a signal of insufficient lubrication or wear.
Follow the operating procedures to avoid frequent starting and stopping or prolonged idling of the vertical long shaft multi-stage drum bag turbine pump, and reduce mechanical impact.
3、 Typical Case Reference
Power industry condensate pump: A 1000MW unit adopts a vertical long shaft multi-stage drum bag turbine pump to transport condensate water. Through regular maintenance and material upgrades, the pump body life has been extended to more than 12 years.
Transportation of LNG in the petrochemical industry: A certain project uses a vertical long shaft multi-stage drum bag turbine pump to transport low-temperature liquefied natural gas. By optimizing the design of the first stage impeller and strengthening insulation measures, the pump body has been operating stably for over 10 years in an environment of -162 ℃.
